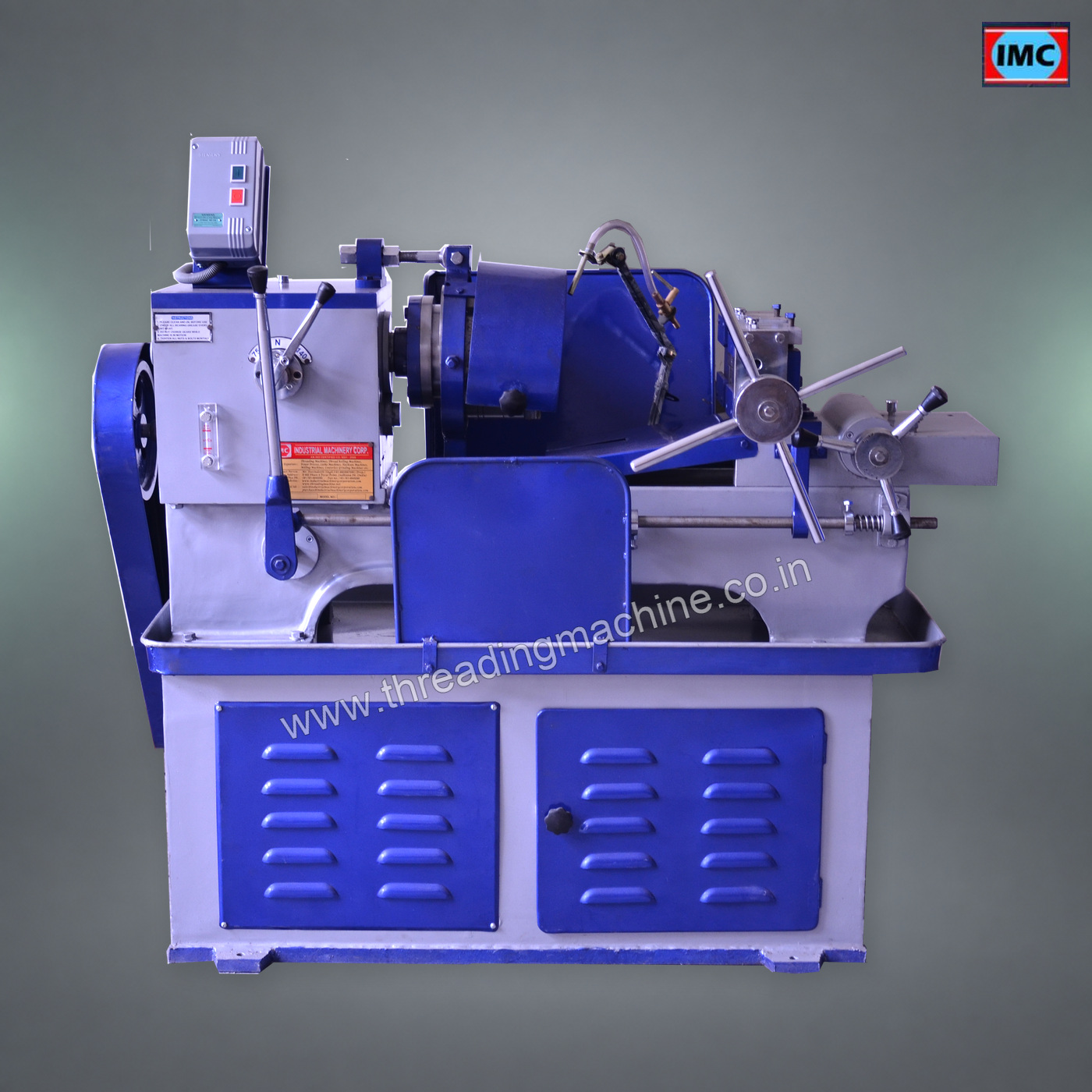

Bolt Threading Machine
Bolt Threading Machine Bolt Threading Machine Bolt Threading Machine

We offer well-designed Bolt Threading Machine in India and abroad. The Bolt Threading Machine we offer is known for superb efficiency and low operational & maintenance costs. We are counted among the top Bolt Thread Cutting Machine Manufacturers, Suppliers, and Exporters. We offer Bolt Thread Cutting Machine at reasonable prices. The Threading Machine Consists of a Base, Head Stock, Saddle, Bed or Pillar-type clamping Vice, Die Head, Apron, and Vice Jaws.

VIEW SPECIFICATIONS

Tags

Bolt Threading Machine, Threading Machine Supplier in india, Threading Machine Manufacturer, Bolt Threading Machine Manufacturer, Industrial machinery Manufacturer in India, Machinery Exporter in India, India, Ludhiana Punjab India

Available Options


Specifications

We offer well designed Bolt Threading Machine in India and abroad. The Bolt Thread Cutting Machine we offer is known for superb efficiency and low operational & maintenance cost. We are counted among the top Bolt Threading Machine Manufacturers, Suppliers, and Exporters. We offer Bolt Thread Cutting Machine at reasonable prices. The Threading Machine Consists of Base, Head Stock, Saddle, Bed or Pillar Type Clamping Vice, Die Head, Apron and Vice Jaws.

Suitable For

  • Matric

  • BSP

  • BSPT

  • NPT

  • UNF

  • UNC

  • BSW

  • B.S.F. threads

Range

  • 1/2" to 2.1/2" Capacity Pipe

  • 1" to 4" Capacity Pipe

  • 2.1/2" to 6" Capacity Pipe

  • 4" to 8" Capacity Pipe

About Components

  • Head Stock : A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.

  • The Bed : The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit.

  • The Saddle : The Saddle is fitted on two pillars very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.

  • The Apron : The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It’s all gears are made of best quality steel.

  • Vice Jaws : The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.

» Specifications
MODEL1/4" TO 1" (BED TYPE)3/8" TO 1.1/2" (BED TYPE)1/2" TO 2.1/2" (BED TYPE)
Saddle Movement10"13"22"
Spindle Speed Range75-14075 -14045 - 90
Number of Spindle Speed222
Threading Capacity1/4" to 1"3/8" to 1.1/2"1/2" to 2.1/2"
Production per Hour60-8060-8070-90
H.P. Required3 H.P.3 H.P.7.5 H.P.
Lead ScrewOptionalOptionalOptional
Weight (KG) Approx.500550

990


Model1/2" to 2.1/2" (Pillar Type)1" to 4" (Pillar Type)2.1/2" to 6" (Pillar Type)4" to 8" (Pillar Type)
Saddle Movement12" – 16"10" – 12"8"8"
Spindle Speed Range60-90-12040-75-11525-5025-50
Number of Spindle Speed3322
Threading Capacity1/2" to 2.1/2"1" to 4"2.1/2" to 6"4" to 8"
Production per Hour70-9035-4020-2515-20
H.P. Power Require (960 RPM)7.5 H.P.12.5 H.P.15 H.P.20 H.P.
Lead ScrewAutomaticAutomaticAutomaticAutomatic
Weight (KG) Approx.990160019002500



Bolt Threader Tangential Chasers

IMC Tangential Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standard. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment, assure that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended. These Tangential Chasers are used in Bolt Thread Cutting Machine.

IMC Chaser is interchangeable. If one Pc. Of a chaser, the set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in threading performance and the damaged set can be replaced without the necessity of replacing the entire set.
