Steel Bar Threading Machine Manufacturers | Bar Thread Cutting Machine

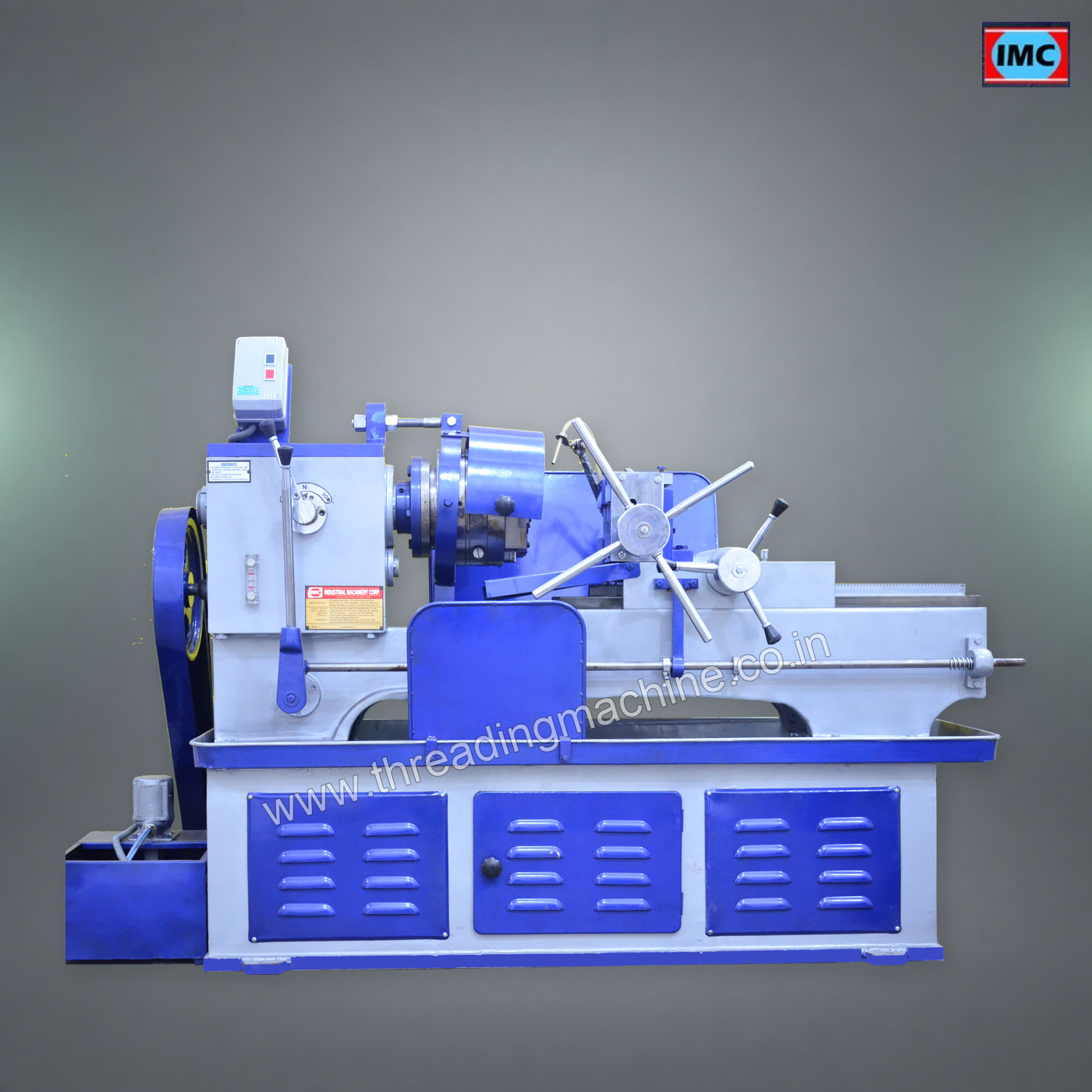

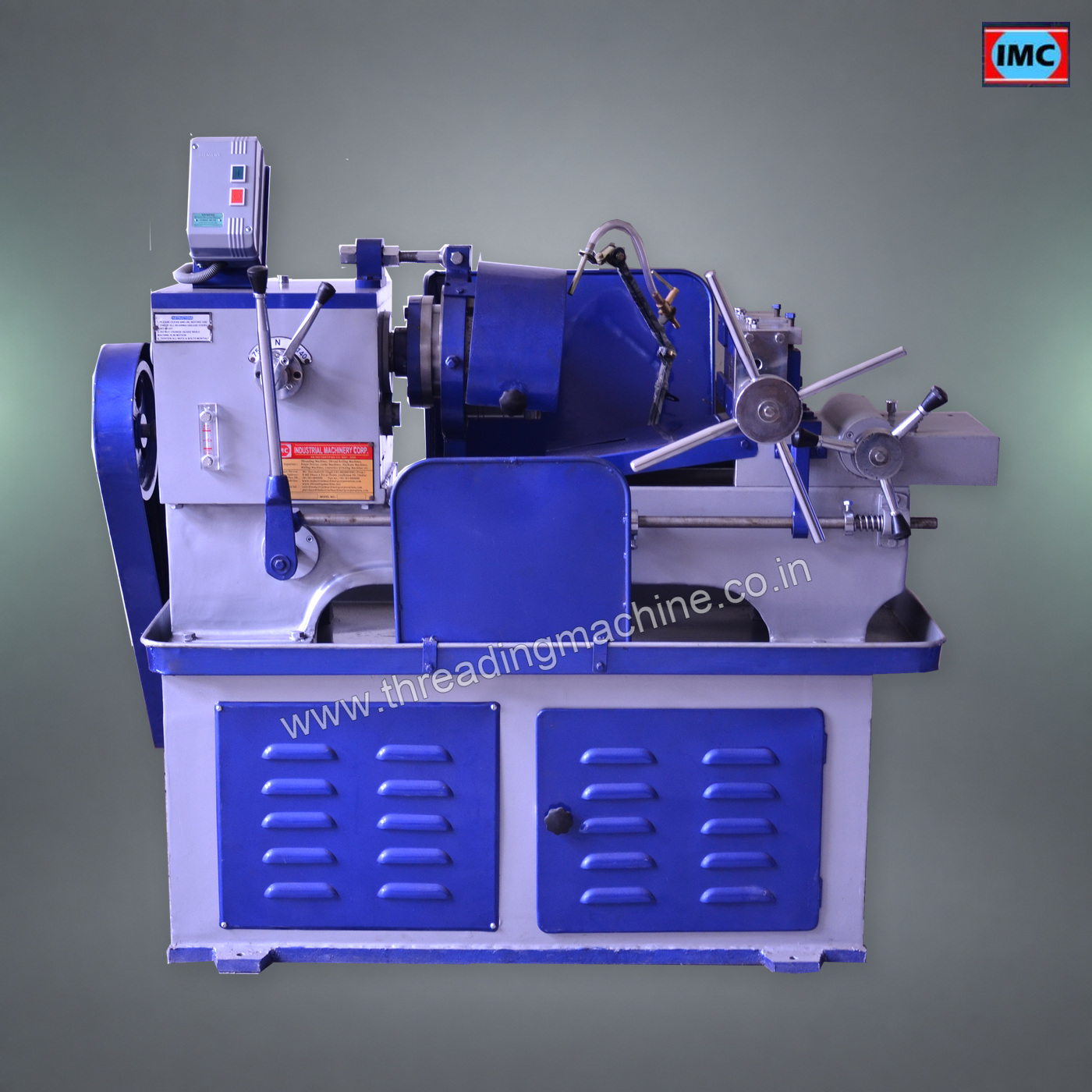

We offer well-designed Bar Thread Cutting Machine in India and abroad. The Bar Thread Cutting Machine we offer is known for superb efficiency and low operational & maintenance costs. We are counted among the top Bar Thread Cutting Machine Manufacturers, Suppliers, and Exporters. We offer Bar Thread Cutting Machines at reasonable prices. The Bar Thread Cutting Machine consists of a Base, Head Stock, Saddle, Bed or Pillar Type Clamping Vice, Die Head, Apron, and Vice Jaws.

VIEW SPECIFICATIONS

Available Options

Diameter of the job

Thread Length Require

Thread Type

Purchase

Expected Price

Specifications

We offer well designed Bar Thread Cutting Machine in India and abroad. The Bar Thread Cutting Machines we offer is known for superb efficiency and low operational & maintenance cost. We are counted among the top Bar Thread Cutting Machine Manufacturers, Suppliers, and Exporters. We offer Bar Thread Cutting Machines at reasonable prices. The Bar Thread Cutting Machine Consists of Base, Head Stock, Saddle, Bed or Pillar Type Clamping Vice, Die Head, Apron and Vice Jaws.

Use For Thread Cutting On: Bolts , Pipes , Rebars , Bars , Rods

Suitable For

Matric

BSPT

B.S.F. threads

Range

1/2" to 2.1/2" Capacity Pipe

1" to 4" Capacity Pipe

2.1/2" to 6" Capacity Pipe

4" to 8" Capacity Pipe

About Components

Head Stock : A heavy duty geared Head Box is of best quality casting providing support to the spindle bearings. The box is of gear type, lubricated, fitted with three extra heavy duty bearings.

The Bed : The bed is pillar type having two pillars made of best quality steel nicely finished & duly hard chrome plated in the most modern hard chrome plating unit.

The Saddle : The Saddle is fitted on two pillers very precisely. It runs on pillars very smoothly and accurately to the Head Stock alignment.

The Apron : The apron gives movement to the saddle with head transfer along with pillars through steel rack and pinion arrangements. It’s all gears are made of best quality steel.

Vice Jaws : The vice jaws made from the best quality alloy steel are fitted on the saddle well aligned with the head stock center fitted in a heavy duty box type vice. The jaws are heat treated. The movements of jaws are controlled by a screw on the saddle.

» Specifications

MODEL	1/4" to 1" (BED TYPE)	3/8" to 1.1/2" (BED TYPE)	1/2" to 2.1/2"(BED TYPE)
Saddle Movement	10"	13"	22"
Spindle Speed Range	75-140	75 -140	45 - 90
Number of Spindle Speed	2	2	2
Threading Capacity	1/4" to 1"	3/8" to 1.1/2"	1/2" to 2.1/2"
Production per Hour	60-80	60-80	70-90
H.P. Required	3 H.P.	3 H.P.	7.5 H.P.
Lead Screw	Optional	Optional	Optional
Weight (KG) Approx.	500	550	990

Model	1/2" to 2.1/2" (Pillar Type)	1" to 4" (Pillar Type)	2.1/2" to 6" (Pillar Type)	4" to 8"(Pillar Type)
Saddle Movement	12" – 16"	10" – 12"	8"	8"
Spindle Speed Range	60-90-120	40-75-115	25-50	25-50
Number of Spindle Speed	3	3	2	2
Threading Capacity	1/2" to 2.1/2"	1" to 4"	2.1/2" to 6"	4" to 8"
Production per Hour	70-90	35-40	20-25	15-20
H.P. Power Require (960 RPM)	7.5 H.P.	12.5 H.P.	15 H.P.	20 H.P.
Lead Screw	Automatic	Automatic	Automatic	Automatic
Weight (KG) Approx.	990	1600	1900	2500

Bar Thread Cutting Tangential Chaser

IMC Tangential Chasers are manufactured from imported High-Speed Steel which must pass exacting metallurgical standard. Experienced heat treatment with the automatically imported heat treatment plant and imported Testing equipment, assure that they will perform satisfactorily in service and produce quality threads within the tolerance for which they ware intended. These Tangential Chasers are used in Bar Thread Cutting Machine.

IMC Chaser is interchangeable. If one Pc. Of a chaser, the set is damaged & is beyond use. Then same No. pc. Of the other chaser set lying in stock may be used and there will not be any difference in thread Cutting performance and the damaged set can be replaced without the necessity of replacing the entire set.
