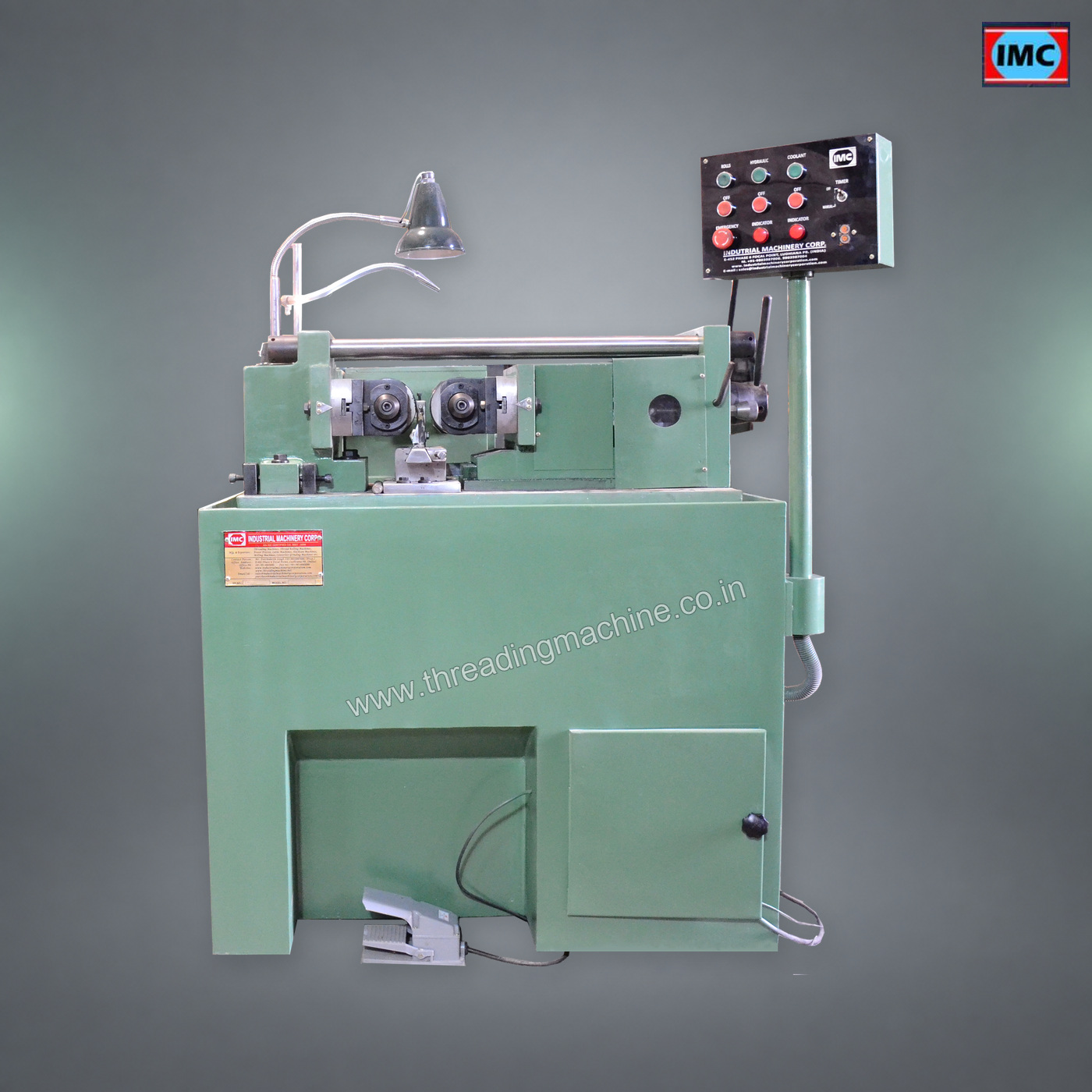

Thread Rolling Machine 2 Roll
Industrial Machinery Corporation are engaged in manufacturing and offering Thread Rolling Machine used for producing screws, bolts and tools. Thread rolling is a cold-forming operation only for external screws threads in a blank. The blank is pressed by thread rolling dies which are attached to the machine. The threads were formed by the pressing progress.
VIEW SPECIFICATIONSTags
Hydraulic Thread Rolling Machine 2 Roll, Circular Thread Rolling Dies, Industrial machinery Manufacturer in India, Ludhiana Punjab India, thread rolling machine, Thread Rolling Dies at Best Price in India, Hydraulic Thread Rolling Machine at Best Price in India, Thread Rolling Machines Two Roll TypeAvailable Options
Specifications
Industrial Machinery Corporation are engaged in manufacturing and offering Thread Rolling Machine used for producing screws, bolts and tools. Thread rolling is a cold-forming operation only for external screws threads in a blank. The blank is pressed by thread rolling dies which are attached to the machine. The threads were formed by the pressing progress.
Specifications:
| Model | IMC-25 | IMC-40 | IMC-50 | IMC-80 | IMC-100 | IMC-120 |
| Max. Pitch Can be Rolled (in mm) | 2.5 | 3.5 | 4.0 | 5.0 | 5.5 | 8 |
| Max. Dia can be Rolled in feed (in mm) | 25 | 40 | 50 | 80 | 100 | 125 |
| Max. Dia can be Through feed (in mm) | 16 | 28 | 35 | 40 | 50 | 70 |
| Max. Rolling Length in feed (in mm) | 80 | 150 | 150 | 150 | 150 | 150 |
| Max. Rolling Length Through feed | Indefinite | Indefinite | Indefinite | Indefinite | Indefinite | Indefinite |
| Max. Outer Dia Thread Rolls (in mm) | 150 | 180 | 200 | 220 | 220 | 220 |
| Spindle Dia (Bore Dia) (in mm) | 54 | 54 | 69.85 | 69.85 | 69.85 | 69.85 |
| Max. Rolling Force | 8 Tons | 13 Tons | 15 Tons | 24 TONS | 30 Tons | 40 Tons |
| Power for Roll Spindles | 3 H.P. 1400 RPM | 5 H.P. 1400 RPM | 7.5 H.P. 1400 RPM | 10 H.P. 1400 RPM | 12. 5 H.P. 1400 RPM | 15 H.P. 1400 RPM |
| Power for Hydraulic Pump | 2 H.P. | 3 H.P. | 5 H.P. | 5 H.P. | 5 H.P. | 7.5 H.P. |
| Power for coolant pump | 0.1 H.P. | 0.1 H.P | 0.1 H.P | 0.1 H.P | 0.1 H.P | 0.1 H.P. |
