Scaffolding Pipe Thread Rolling Machine

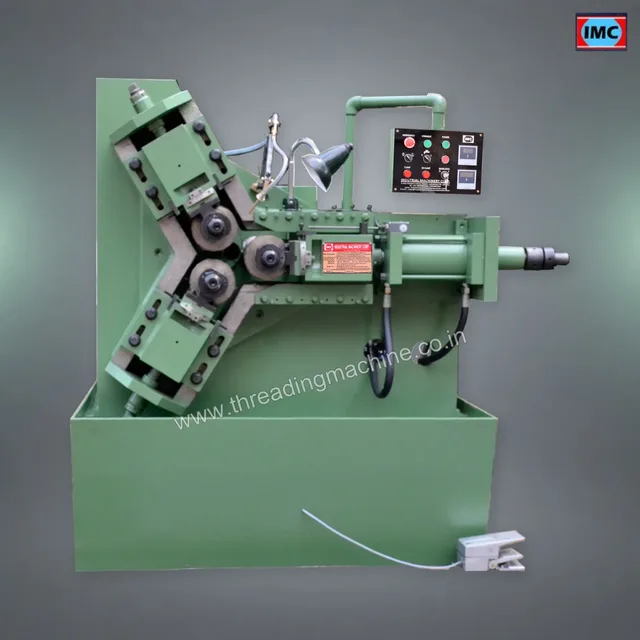

Thread Rolling Machine 3 Roll by Industrial Machinery Corporation

Review Scaffolding Pipe Thread Rolling Machine for your component and the required production operation.

Prepare a job-specific equipment enquiry

IMC can review a configuration to form external threads on suitable pipe workpieces with a matched three-roll hydraulic configuration against your component requirements. Send a drawing or sample and state pipe diameter, wall thickness, material, thread drawing and desired length. Distinguish the required operation from other stages in the workshop so the offer identifies the equipment actually needed.

Confirm the working configuration

The technical discussion should address three-roll dies, mounting fit, pipe support and the intended feed arrangement. Ask for the included tool package and accessories to be identified against the drawing rather than relying only on a product name. Pipe wall section and material suitability are important; outside diameter by itself does not establish rolling compatibility. Include the intended batch mix and how the workpiece will be loaded, supported and inspected.

Specify delivery and acceptance

Agree the component checks for thread profile, mating-part fit and pipe condition after forming. Confirm the destination and available electrical supply, together with any packing, spare-tool or commissioning needs. Delivery and service terms should be agreed in the offer. Review the model data below and add the selected configuration and quantity to the Quote List so those options accompany the enquiry.

Information to send with your enquiry

  • Pipe diameter
  • Wall thickness
  • Material
  • Thread drawing and desired length

To review your application, send IMC your component drawing and requirements. You can also compare related machines and tooling in the product range.

VIEW SPECIFICATIONS

Tags

Hydraulic Thread Rolling Machines 3Roll, Hydraulic Thread Rolling Machine 2 Roll, Ludhiana Punjab India, thread rolling dies manufacturers, Thread Rolling Dies at Best Price in India, Hydraulic Thread Rolling Machine at Best Price in India, thread rolling machine manufacturers in india
CONFIGURE YOUR MACHINE

Available options

Select the required options and add this machine to your quotation.

Available Options


Your selected configuration is stored in the existing Quote List flow for review before enquiry.

Product Videos

View full playlist on YouTube
TECHNICAL DATA

Technical Specifications

Model data and technical details supplied for this product. Final configuration can be confirmed against your application.

The first thing that is to take care of is the raw material and the raw material that we use is drawn from our age-old resources which have been most reliable in supplying only the best quality raw material to our industrial manufacturing unit based in Ludhiana. This does not mean that we rest assured and start working on it. No, before starting using that raw material, after it has been supplied to our factory, our quality assessment team checks every centimeter of it for any flaws or imperfections. If there is some sort of faulty raw material is discovered it is immediately abandoned from the production arena. During the manufacturing process, every step is taken to make sure that no sort of compromise is made at any stage of production. This is the reason why the pipe thread roller machine made at our unit based in Ludhiana finds no predicament in passing the rigid quality checks that come across its way of being the best. The hydraulic thread rolling machine 3 roll that we build here is carefully and cautiously made to make sure that it is fitted with all the safety features to make it safe and perfect for use. Let’s review some of the other qualities of this Hydraulic Thread Rolling Machine 3 Roll Type


  • This pipe thread roller works on hydraulic power in which simultaneously three forces could be applied concentrated method on 120 degrees and with this much of power, there is no chance that there would come any flaw or fault in precision.
  • The elimination of the support blade is there to provide perfect finishing to every piece. This pipe thread roller machine works best when working for rolling pipes, lapping works, and threading with high-quality precision for a big quantity of production.
  • The length and the rolling time can be adjusted as per the need and the comfort of the operator.

Apart from hydraulic thread rolling machines we also specialize in supplying other thread rollers, work rest blades and many other tools to our clients. These tools may range from tools to measure accuracy and precision to tools to maintain our machines. And all these machines and constituents that we provide are either provided free or at very titular prices.

Hydraulic Thread Rolling Machine 3 Roll Type Specifications:
Model IMC-3R-25 IMC-3R-50IMC-3R-75
Work Range

Out Side DiameterThread Length in Feed

Thread Length Through Feed

(8-25 MM) (1/2"- 1")(38 MM) (1.1/2")  (Indefinite) (Indefinite)(25-50 MM) (1"- 2")(50 MM)(2")  (Indefinite)(Indefinite)(32-75 MM) (1.1/4"- 3")(75 MM) (3")  (Indefinite) (Indefinite)
Roll Dies

Max. Out Side Dia.Max. Inside Dia

Spindle Box

14060

40

14060

40

17080

54

MotorFor Roll Spindle3 H.P.3 H.P.7.5 H.P.
3 Phase ACFor Hydraulic System1 H.P.1 H.P.3 H.P.
Coolant Pump0.1 H.P.0.1 H.P.0.1 H.P.

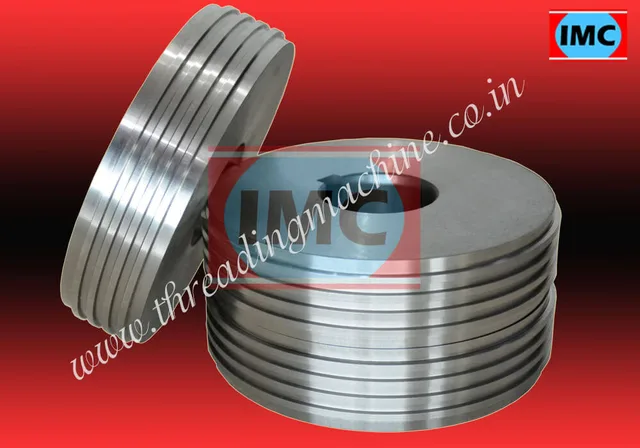

thread rolls die

Thread rolls

IMC Thread rolls are used on thread rolling machine. These rolls come in the set of two and three pieces manufactured from D2, D3 and M2 Material to suit any type of machine. For any specification of thread such as ISO Metric Din White worth America, Trapezoidal, Acme etc

Read More…

Frequently Asked Questions About Thread Rolling Machine 3 Roll

Those details define the application that the equipment must accommodate. Review the workpiece material, wall thickness if tubular, and required thread. Ask for the proposed dies, support and feed arrangement for the selected model.

Select the listed machine options, add the required quantity and attach your application notes. State outside diameter, tube wall and thread drawing, together with the intended output and delivery location, so the quotation addresses your actual production task.

Three-roll hydraulic machinery forms external threads around a supported cylindrical component. Its role should be considered alongside the preceding preparation and subsequent inspection or assembly steps. The technical table and working videos provide a starting point for that discussion.
